SAWAYA RECYCLE PLANT

Fluorescent Light Recycle System

RECYCLE PLANT

40W Fluorescent tubes crushing system / SCS-40W2

RECYCLE PLANT

Automated crushing system designed for 40W fluorescent tubes. The machine cuts contact pins, brushes to remove dust and dirt removes aluminum cap then cuts off both side of glass.

RECYCLE PLANT

Model SCS-40W2
Processing Object 40W Fluorescent tubes
Weight 920kg (excludes pedestal)
Size 1,800mm x 8,400mm
Electricity Consumption 7.6kw
Capacity 1,200 units / hr
Unit formation
  • Contact pin cutting unit
  • Dry brushing unit
  • Heads heating Unit
  • Cap removal unit
  • Heads cutting Unit
  • Crushing Unit
  • Fluorescence Powder removal Unit
  • Dust Catcher (Option)

*Each specification may change without notice.

Fluorescent tubes crushing system (Except 40W) SCS-FL20-110

RECYCLE PLANT

Automated crushing system for 20W-110W fluorescent tubes (except 40W). The system will cut both sides of fluorescent tubes (pre-treatment to remove connecting pins and aluminum cap is required). The systems can also crush the middle part of fluorescent tubes separately from the side parts.

Weight 550kg (excludes pedestal)
Size 6,000mm x 3700mm
Electricity Consumption 4.1kw
Capacity 200Unit /hr (For 110WTube)
Unit formation
  • Heads cutting Unit
  • Crushing Unit
  • Fluorescence Powder removal Unit
  • Dust Catcher

*Each specification may change without notice.

Circline Fluorescent light crushing system SCS-0301(CA) 2

RECYCLE PLANT

Automated crushing system for circline fluorescent light and compact fluorescent light. The system will cut both sides of fluorescent tubes (pre-treatment to remove connecting pins and aluminum cap is required). The systems can also crush the middle part of fluorescent tubes separately from the side parts.

Weight 110kg (excludes pedestal)
Size 1,000mm x 975mm
Electricity Consumption 2.4kw
Capacity 1,200Unit /hr (For 40W circline)
Unit formation
  • Heads cutting Unit
  • Crushing Unit
  • Fluorescence Powder removal Unit
  • Dust Catcher

*Each specification may change without notice.

Multi-Lamp crushing system SCS-0104(0)

RECYCLE PLANT

It is difficult to recycle various type of bulb lamp (mercury/ Fluorescent). This system can perfectly crush these lamps for recycling and disposal.

Weight 60kg (excludes pedestal)
Size 900mm x 700mm
Electricity Consumption 0.75kw
Capacity 500kg /hr
Unit formation
  • Crushing Unit
  • Dust Catcher

*Each specification may change without notice.

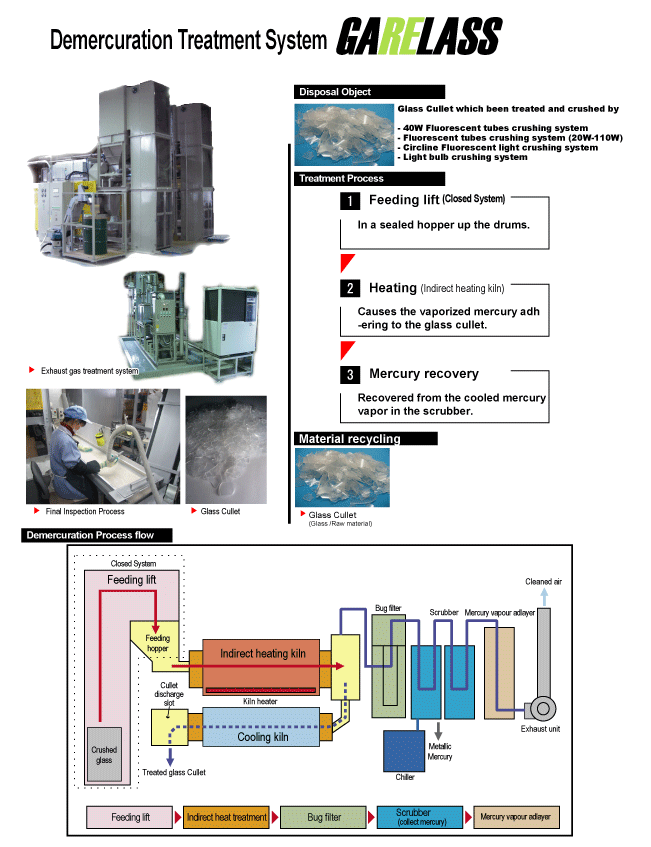

Demercuration Treatment System GARELASS

RECYCLE PLANT

The system will remove mercury from glass cullet. Crushed high quality cullet and low quality cullet could separately processed by heat treatment system at same time. The glass cullet can be recycled or disposed after the treatment.

RECYCLE PLANT

Model SMS-0324W(Double unit)
Processing Object Glass Cullet which been treated and crushed
Weight 6,200kg(Single unit)
Size 5,935mm x 2,238mm x 3,530mm(Single unit)
Electricity Consumption 200kw
Capacity 600kg / hr
Unit formation
  • Feeding lift
  • Feeding hopper
  • Screw conveyer
  • Indirect electric heater
  • Bug filter
  • Scrubber
  • Mercury vapour adlayer
  • Glass cooling system
  • Conveyer belt for high quality glass cullet
Options
  • Precipitator
  • Mercury Analyzer
  • High quality cullet sorting line
  • Magnetic ore separator

*Each specification may change without notice.

Only Phosphor Demercuration Treatment System GARELASS-2

RECYCLE PLANT

*Each specification may change without notice.
